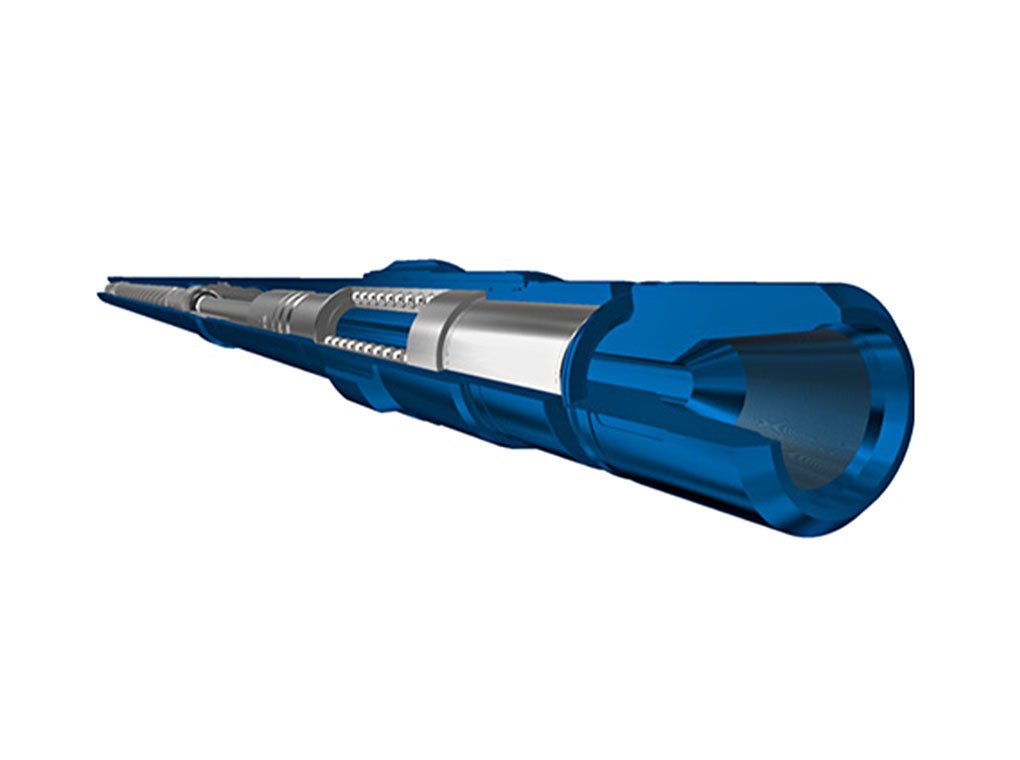

Our company can provide various specifications of screw drill tools suitable for wellbores ranging from 17/8" to 26". The main specifications include Φ38, Φ43, Φ54, Φ60, Φ73, Φ79, Φ80, Φ89, Φ95, Φ102, Φ106, Φ120, Φ127, Φ130, Φ135, Φ150, Φ159, Φ165, Φ172, Φ178, Φ185, Φ197, Φ203, Φ210, Φ216, Φ222, Φ228, Φ244, Φ254, Φ286, Φ305 and over 30 other types. There are various structural styles such as straight body, single bend, double bend, and adjustable angle at the wellhead. We can provide screw drill tools with four heat resistance temperature ranges: ≤120℃, 120℃~150℃, 150℃~180℃, and 180℃~200℃. We can also provide drill tools that are resistant to oil-based mud and saturated salt water mud in various specifications. We can provide screw drill tools with uniform wall thickness in various models.
We offer customized services, developing and designing screw drill tools according to customer requirements.
Mud-Motor Specification
Drilling tool model | 5LZ43×7.0-3.5 | 5LZ43×7.0-5 | 5LZ54×7.0-3 | 5LZ54×7.0-3.4 | 5LZ54×7.0-6 | 7LZ54×7.0-2 | 3LZ60×7.0-4 | 5LZ60×7.0-5 | |
Model | 1695635 | 1695650 | 2135630 | 2135634 | 2135660 | 2137820 | 2383440 | 2385650 | |
适合井眼 Bit Size | in mm | 1 7/8 – 3 47.6-76.2 | 1 7/8 – 3 47.6-76.2 | 2 3/8– 3 1/2 60-89 | 2 3/8– 3 1/2 60-89 | 2 3/8– 3 1/2 60-89 | 2 3/8– 3 1/2 60-89 | 3 1/8– 4 3/8 79-111.1 | 3 1/8– 4 3/8 79-111.1 |
外径 OD | in mm | 1 3/4 44 | 1 3/4 44 | 2 1/8 56 | 2 1/8 56 | 2 1/8 56 | 2 1/8 56 | 2 3/8 63 | 2 3/8 60.5 |
可调角度 ABH | ° | ||||||||
马达头数 Lobe | 5:6 | 5:6 | 5:6 | 5:6 | 5:6 | 7:8 | 3:4 | 5:6 | |
马达级数 Stages | 3.5 | 5 | 3 | 3.4 | 6 | 2 | 4 | 5 | |
马达压降 Pressure | MPa PSI | 4.2 609 | 6.0 870 | 3.6 522 | 4.1 595 | 7.2 1044 | 2.4 348 | 4.8 696 | 6.0 870 |
流量范围 Flow Rate | L/s GPM | 1-1.7-2.5 15-28-40 | 1-1.7-2.5 15-28-40 | 1.3-2.2-3.2 21-35-50 | 1.3-2.2-3.2 21-35-50 | 1.3-2.2-3.2 21-35-50 | 1.3-2-2.7 21-35-50 | 1.5-2.2-3 24-35-48 | 1.3-2.2-3.2 20.6-35-51 |
每转排量 Flow Per Revolution | L/r r/gal | 0.27 14 | 0.27 14 | 0.34 11 | 0.6 6.3 | 0.34 11 | 1.3 2.91 | 0.33 11.5 | 0.50 7.57 |
钻头转速 Bit Speed | rpm | 222-378-555 | 222-378-555 | 230-390-565 | 130-220-320 | 230-390-565 | 60-92-124 | 270-396-540 | 156-264-384 |
工作扭矩 Torque | N·m Ft-lbs | 126 92 | 180 132 | 144 108 | 294 218 | 288 216 | 345 255 | 198 146 | 420 310 |
最大扭矩 Max.torque | N·m Ft-lbs | 189 138 | 270 198 | 216 162 | 368 272 | 432 324 | 517 382 | 297 219 | 630 465 |
输出功率 Output Power | kw HP | 2.2-5.4 2.9-7.2 | 3.1-7.7 4.2-10.3 | 2.6-6.5 3.6-8.8 | 4.4-13.5 5.9-18 | 5.3-13 7.2-17.5 | 4-14 5.4-18.6 | 6-16.8 8-22.8 | 7.7-18.8 10.3-25.2 |
推荐钻压 Weight on Bit | KN lb | 2.5 550 | 2.5 550 | 4 880 | 4 880 | 4 880 | 4 880 | 4 880 | 4 880 |
最大钻压 Max.Weight on Bit | KN lb | 6 1320 | 6 1320 | 8 1760 | 8 1760 | 8 1760 | 8 1760 | 8 1760 | 8 1760 |
连接螺纹 Connection （REG） | 上端 母扣 | 1AMMT | 1AMMT | 1 1/2 | 1 1/2 | 1 1/2 | 1 1/2 | 1 1/2 | 1 1/2 |
下端 母扣 | 1AMMT | 1AMMT | 1 1/2 | 1 1/2 | 1 1/2 | 1 1/2 | 1 1/2 | 1 1/2 | |
常规长度 Length |
mm Ft | 2030 | 2967 | 2624 | 3529 | 3529 | 3529 | 3100 | 4153 |
6.66 | 9.73 | 8.61 | 11.58 | 11.58 | 11.58 | 10.17 | 13.63 | ||
常规重量 Weight | kg lb | 20 44 | 25 55 | 50 110 | 56 123 | 56 123 | 56 123 | 58 127 | 64 140 |
马达长度 Stator Length |
mm Ft | 1500 | 1850 | 1330 | 2235 | 2235 | 2235 | 1800 | 2605 |
4.92 | 6.07 | 4.36 | 7.33 | 7.33 | 7.33 | 5.91 | 8.55 | ||
Mud-Motor Specification
Drilling tool model | 4LZ73×7.0-4 | 5LZ73×7.0-3 | 5LZ73×7.0-4.7 | 5LZ80×7.0-3 | 7LZ79×7.0-4 | 7LZ80×7.0-3 | 5LZ89×7.0-3 | |
Model | 2874540 | 2875630 | 2875647 | 3155635 | 3117840 | 3157830 | 3505630 | |
适合井眼 Bit Size | in mm | 3 3/8– 4 3/8 85.7-111.1 | 3 3/8– 4 3/8 85.7-111.1 | 3 3/8– 4 3/8 85.7-111.1 | 3 3/4– 4 3/4 95.3-121.7 | 3 3/8– 4 3/8 85.7-111.1 | 3 3/4– 4 3/4 95.3-121.7 | 4 1/2– 6 114.3-152.4 |
外径 OD | in mm | 2 7/8 76 | 2 7/8 74 | 2 7/8 74 | 3 1/8 80.5 | 3 1/9 79 | 3 1/8 80.5 | 3 1/2 89 |
可调角度 ABH | ° | 0-3 | 0-3 | 0-3 | 0-3 | 0-3 | 0-3 | 0-3 |
马达头数 Lobe | 4:5 | 5:6 | 5:6 | 5:6 | 7:8 | 7:8 | 5:6 | |
马达级数 Stages | 4 | 3 | 4.7 | 3.5 | 4 | 3 | 3 | |
马达压降 Pressure | MPa PSI | 4.8 696 | 3.6 522 | 5.6 812 | 4.2 609 | 4.8 696 | 3.6 522 | 3.6 522 |
流量范围 Flow Rate | L/s GPM | 2-3.5-5 32-56-80 | 2-5-7 32-80-111 | 3-6-9 48-96-144 | 2.5-5-7 40-80-111 | 3-6-9 48-96-144 | 5-7-9 80-111-143 | 3-6.5-10 48-103-159 |
每转排量 Flow Per Revolution | L/r r/gal | 0.68 5.6 | 0.8 4.7 | 1.1 3.44 | 1.3 2.9 | 2 1.9 | 2.2 1.7 | 1.53 2.47 |
钻头转速 Bit Speed | rpm | 176-308-441 | 148-370-518 | 164-327-491 | 120-220-315 | 90-180-270 | 136-191-245 | 118-255-392 |
工作扭矩 Torque | N·m Ft-lbs | 408 301 | 384 283 | 740 546 | 744 550 | 1266 934 | 900 666 | 876 647 |
最大扭矩 Max.torque | N·m Ft-lbs | 612 451 | 576 425 | 1110 819 | 1116 822 | 1899 1401 | 1350 1000 | 1314 970 |
输出功率 Output Power | kw HP | 9.6-24 12.8-32.2 | 5.8-20.4 7.7-27.7 | 13-38 17-51 | 8.4-23.5 11.3-31.5 | 18-52 25-70 | 12.8-27.6 17.2-37 | 13-36 17.4-48.2 |
推荐钻压 Weight on Bit | KN lb | 15 3300 | 15 3300 | 15 3300 | 16 3520 | 16 3520 | 16 3520 | 20 4400 |
最大钻压 Max.Weight on Bit | KN lb | 20 4400 | 20 4400 | 20 4400 | 25 5500 | 25 5500 | 25 5500 | 30 6600 |
连接螺纹 Connection （REG） | 上端 母扣 | 2 3/8 TBG | 2 3/8 TBG | 2 3/8 TBG | 2 3/8 | 2 3/8 | 2 3/8 | 2 3/8 |
下端 母扣 | 2 3/8 | 2 3/8 | 2 3/8 | 2 3/8 | 2 3/8 | 2 3/8 | 2 3/8 | |
常规长度 Length |
mm Ft | 4073 | 3670 | 4520 | 3880 | 4630 | 4270 | 3430 |
13.36 | 12.04 | 14.83 | 12.73 | 15.19 | 14.01 | 11.25 | ||
常规重量 Weight | kg lb | 94 207 | 85 187 | 100 221 | 110.7 243.5 | 123.4 271.5 | 127.4 280.3 | |
马达长度 Stator Length |
mm Ft | 2180 | 1780 | 2490 | 2240 | 2990 | 2670 | 1735 |
7.15 | 5.84 | 8.17 | 7.35 | 9.81 | 8.76 | 5.69 | ||
Mud-Motor Specification
Drilling tool model | 5LZ89×7.0-3.1 | 9LZ89×7.0-3 | 5LZ95×7.0-4 | 5LZ95×7.0-5 | 7LZ95×7.0-3 | 7LZ102×7.0-3 | 7LZ106×7.0-5.5 | |
Model | 3505631 | 3509030 | 3755640 | 3755650 | 3757830 | 4007830 | 4177855 | |
适合井眼 Bit Size | in mm | 4 1/2– 6 114.3-152.4 | 4 1/2– 6 114.3-152.4 | 4 5/8 – 6 117.5-152.4 | 4 5/8 – 6 117.5-152.4 | 4 5/8 – 6 117.5-152.4 | 4 5/8 – 6 117.5-152.4 | 4 5/8 – 6 117.5-152.4 |
外径 OD | in mm | 3 1/2 89 | 3 1/2 89 | 3 3/4 96 | 3 3/4 96 | 3 3/4 96 | 4 103 | 4 1/8 106 |
可调角度 ABH | ° | 0-3 | 0-3 | 0-4 | 0-4 | 0-4 | 0-4 | 0-2 |
马达头数 Lobe | 5:6 | 9:10 | 5:6 | 5:6 | 7:8 | 7:8 | 7:8 | |
马达级数 Stages | 3.1 | 3 | 4 | 5 | 3 | 3 | 5.5 | |
马达压降 Pressure | MPa PSI | 3.7 539 | 3.6 522 | 4.8 696 | 6.0 870 | 3.6 522 | 3.6 522 | 6.6 957 |
流量范围 Flow Rate | L/s GPM | 3-5-7 48-80-111 | 4-8-12 63-127-190 | 5-8-12 80-127-190 | 5.4-9.3-13.2 85.6-148-210 | 6-9-12 95-143-190 | 6-10-14 95-159-222 | 6-10-14 95-159-222 |
每转排量 Flow Per Revolution | L/r r/gal | 1.0 3.8 | 2 1.9 | 2.5 1.5 | 2.6 1.46 | 3.13 1.2 | 3.1 1.22 | 3.75 1.0 |
钻头转速 Bit Speed | rpm | 180-300-420 | 120-240-360 | 120-192-288 | 125-215-305 | 115-173-230 | 116-193-270 | 96-160-224 |
工作扭矩 Torque | N·m Ft-lbs | 576 425 | 1152 850 | 1428 1056 | 1776 1309 | 1440 1063 | 1632 1205 | 3209 2369 |
最大扭矩 Max.torque | N·m Ft-lbs | 864 637 | 1728 1276 | 2142 1579 | 2664 1968 | 2160 1596 | 2448 1806 | 4813 3553 |
输出功率 Output Power | kw HP | 8.6-28.8 11.5-38.6 | 18-54 24.1-72.4 | 18-64.8 24.1-86.8 | 22.8-85.2 30.6-114.2 | 18-36 24.1-48.2 | 17.3-40.3 23.2-54 | 20.4-72 27.3-96.5 |
推荐钻压 Weight on Bit | KN lb | 20 4400 | 20 4400 | 25 5500 | 25 5500 | 25 5500 | 25 5500 | 25 5500 |
最大钻压 Max.Weight on Bit | KN lb | 30 6600 | 30 6600 | 50 11000 | 50 11000 | 50 11000 | 50 11000 | 50 11000 |
连接螺纹 Connection （REG） | 上端 母扣 | 2 3/8 | 2 3/8 | 2 7/8 | 2 7/8 | 2 7/8 | 2 7/8 | 2 7/8 |
下端 母扣 | 2 3/8 | 2 3/8 | 2 7/8 | 2 7/8 | 2 7/8 | 2 7/8 | 2 7/8 | |
常规长度 Length |
mm Ft | 3210 | 3125 | 4865 | 5370 | 4365 | 4188 | 6311 |
10.53 | 10.25 | 15.96 | 17.62 | 14.32 | 13.74 | 20.71 | ||
常规重量 Weight | kg lb | 120 264 | 95 209 | 192 422 | 178 390 | 191 420 | 220 484 | 314 691 |
马达长度 Stator Length |
mm Ft | 1340 | 2040 | 2880 | 3385 | 2380 | 2570 | 4150 |
4.40 | 6.69 | 9.45 | 11.1 | 7.81 | 8.43 | 13.62 | ||
Mud-Motor Specification
Drilling tool model | 5LZ120×7.0-3.5 | 5LZ120×7.0-4.5 | 5LZ120×7.0-5 | 7LZ120×7.0-2.9 | 7LZ120×7.0-3.8 | 6LZ127×7.0-6 | 6LZ127×7.0-8 | |
Model | 4755635 | 4755645 | 4755650 | 4757829 | 4757838 | 5006760 | 5006780 | |
适合井眼 Bit Size | in mm | 5 7/8– 7 7/8 149.2-200 | 5 7/8– 7 7/8 149.2-200 | 5 7/8– 7 7/8 149.2-200 | 5 7/8– 7 7/8 149.2-200 | 5 7/8– 7 7/8 149.2-200 | 5 7/8– 7 7/8 149.2-200 | 5 7/8– 7 7/8 149.2-200 |
外径 OD | in mm | 4 3/4 122 | 4 3/4 122 | 4 3/4 122 | 4 3/4 122 | 4 3/4 122 | 5 127 | 5 127 |
可调角度 ABH | ° | 0-3 | 0-3 | 0-3 | 0-3 | 0-3 | 0-3/0-2 | 0-3/0-2 |
马达头数 Lobe | 5:6 | 5:6 | 5:6 | 7:8 | 7:8 | 6:7 | 6:7 | |
马达级数 Stages | 3.5 | 4.5 | 5 | 2.9 | 3.8 | 6 | 8 | |
马达压降 Pressure | MPa PSI | 4.2 609 | 5.4 783 | 6.0 870 | 3.5 508 | 4.6 661 | 7.2 1044 | 9.6 1392 |
流量范围 Flow Rate | L/s GPM | 9-13-16 143-206-254 | 10-14-18 159-222-285 | 9-13-16 143-206-254 | 10-15-19 159-238-301 | 10-15-19 159-238-301 | 9-16-22 140-250-350 | 9-16-22 140-250-350 |
每转排量 Flow Per Revolution | L/r r/gal | 4.0 0.95 | 4.8 0.8 | 4.0 0.95 | 12.59 0.3 | 7.37 0.51 | 4.7 0.81 | 4.7 0.81 |
钻头转速 Bit Speed | rpm | 136-197-243 | 126-176-227 | 136-197-243 | 48-72-91 | 81-122-155 | 115-204-280 | 115-204-280 |
工作扭矩 Torque | N·m Ft-lbs | 2040 1506 | 3100 2290 | 2900 2140 | 5580 4115 | 4000 2950 | 4200 3097 | 5600 4144 |
最大扭矩 Max.torque | N·m Ft-lbs | 3060 2256 | 4650 3430 | 4350 3210 | 8364 6168 | 6000 4425 | 6300 4646 | 8400 6216 |
输出功率 Output Power | kw HP | 30.2-53.8 40.5-72.1 | 40.8-109.2 54.7-146.3 | 43.2-76.8 57.9-103 | 27.6-52.8 37-70.8 | 34.8-97.2 46.6-130.2 | 62-140 83-187 | 62-160 83-214 |
推荐钻压 Weight on Bit | KN lb | 30 6600 | 40 8800 | 40 8800 | 40 8800 | 40 8800 | 50 11000 | 50 11000 |
最大钻压 Max.Weight on Bit | KN lb | 60 13200 | 60 13200 | 60 13200 | 60 13200 | 60 13200 | 70 15400 | 70 15400 |
连接螺纹 Connection （REG） | 上端 母扣 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 |
下端 母扣 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | |
常规长度 Length |
mm Ft | 4988 | 6295 | 5715 | 8374 | 7125 | 7203 | 8433 |
16.36 | 20.65 | 18.75 | 27.47 | 23.38 | 23.63 | 27.67 | ||
常规重量 Weight | kg lb | 283 622 | 374 824 | 333 733 | 530 1168 | 409 897 | 485 1067 | 614 1350 |
马达长度 Stator Length |
mm Ft | 2560 | 4000.00 | 3350 | 6377.00 | 4750 | 4656 | 6081 |
8.4 | 13.12 | 11 | 20.92 | 15.6 | 15.28 | 19.95 | ||
Mud-Motor Specification
Drilling tool model | 5LZ127×7.0-5 | 7LZ127×7.0-4 | 7LZ127×7.0-5 | 7LZ130×7.0-8.3 | 5LZ135×7.0-5 | 7LZ135×7.0-3.8 | 7LZ135×7.0-4.2 | |
Model | 5005650 | 5007840 | 5007850 | 5157883 | 5255650 | 5257838 | 5257842 | |
适合井眼 Bit Size | in mm | 5 7/8– 7 7/8 149.2-200 | 5 7/8– 7 7/8 149.2-200 | 5 7/8– 7 7/8 149.2-200 | 5 7/8– 7 7/8 149.2-200 | 5 7/8– 7 7/8 149.2-200 | 5 7/8– 7 7/8 149.2-200 | 5 7/8– 7 7/8 149.2-200 |
外径 OD | in mm | 5 127 | 5 127 | 5 127 | 5.15 130 | 5 1/4 136 | 5 1/4 136 | 5 1/4 136 |
可调角度 ABH | ° | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | |||
马达头数 Lobe | 5:6 | 7:8 | 7:8 | 7:8 | 5:6 | 7:8 | 7:8 | |
马达级数 Stages | 5 | 4 | 5 | 8.3 | 5 | 3.8 | 4.2 | |
马达压降 Pressure | MPa PSI | 6.0 870 | 4.8 696 | 6.0 870 | 10 1450 | 6.0 870 | 4.6 661 | 5.0 730 |
流量范围 Flow Rate | L/s GPM | 9-13-16 143-206-254 | 9-14-18 143-222-285 | 10-15-19 159-238-301 | 12-19-25 200-300-400 | 14-18-21 222-285-333 | 15-20-25 238-317-396 | 20-25-30 317-396-476 |
每转排量 Flow Per Revolution | L/r r/gal | 5.0 0.757 | 6.6 0.57 | 6 0.63 | 7.5 0.5 | 6.35 0.60 | 9.46 0.40 | 11.5 0.42 |
钻头转速 Bit Speed | rpm | 109-157-193 | 82-128-164 | 100-150-189 | 90-145-200 | 132-170-198 | 95-127-159 | 90-145-200 |
工作扭矩 Torque | N·m Ft-lbs | 3840 2834 | 4320 3188 | 4296 3170 | 9830 7249 | 4570 3380 | 5200 3835 | 9830 7249 |
最大扭矩 Max.torque | N·m Ft-lbs | 5760 4251 | 6480 4782 | 6444 4756 | 14740 10870 | 6858 5061 | 7800 5752 | 14740 10870 |
输出功率 Output Power | kw HP | 43.2-76.8 57.9-102.9 | 49.2-97.2 65.9-130.2 | 45.6-128.4 61.1-172.1 | 95-199 127-267 | 63.6-142.8 85.2-191.4 | 74-124 99-166 | 95-199 127-267 |
推荐钻压 Weight on Bit | KN lb | 50 11000 | 50 11000 | 50 11000 | 50 11000 | 50 11000 | 50 11000 | 50 11000 |
最大钻压 Max.Weight on Bit | KN lb | 70 15400 | 70 15400 | 70 15400 | 70 15400 | 70 15400 | 70 15400 | 70 15400 |
连接螺纹 Connection （REG） | 上端 母扣 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 4 1/2 | 4 1/2 | 3 1/2 |
下端 母扣 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 4 1/2 | 4 1/2 | 3 1/2 | |
常规长度 Length |
mm Ft | 6547 | 6547 | 7391 | 10452 | 7180 | 7180 | 8880 |
21.48 | 21.48 | 24.25 | 34.29 | 23.56 | 23.56 | 29.13 | ||
常规重量 Weight |
kg lb | 441 | 441 | 490 | 749 | 470 | 470 | 608 |
970 | 970 | 1078 | 1648 | 1034 | 1034 | 1338 | ||
马达长度 Stator Length |
mm Ft | 4000 | 4000 | 4844 | 6985 | 4500 | 4500 | 5570 |
13.12 | 13.12 | 15.89 | 22.92 | 14.76 | 14.76 | 18.27 | ||
Mud-Motor Specification
Drilling tool model | 7LZ135×7.0Ⅳ | 5LZ150×7.0Ⅳ | 7LZ159×7.0-4.8 | 2LZ165×7.0-8 | 5LZ165×7.0-3 | 5LZ165×7.0-4 | 5LZ165×7.0-5.5 | |
Model | 5257840 | 5875640 | 6257848 | 6502380 | 6505630 | 6505640 | 6505655 | |
适合井眼 Bit Size | in mm | 5 7/8– 7 7/8 149.2-200 | 6 3/4– 8 3/4 171.5-222.2 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 |
外径 OD | in mm | 5 1/4 136 | 5 7/8 150 | 6 1/4 162 | 6 1/2 167 | 6 1/2 167 | 6 1/2 167 | 6 1/2 167 |
可调角度 ABH | ° | 0-3/0-2 | 0-3 | 0-3 | 0-3 | 0-3 | 0-3 | |
马达头数 Lobe | 7:8 | 5:6 | 7:8 | 2:3 | 5:6 | 5:6 | 5:6 | |
马达级数 Stages | 4 | 4 | 4.8 | 8 | 3 | 4 | 5.5 | |
马达压降 Pressure | MPa PSI | 4.8 696 | 4.8 696 | 5.8 841 | 9.6 1392 | 3.6 522 | 4.8 696 | 6.6 957 |
流量范围 Flow Rate | L/s GPM | 14-19-22 222-301-349 | 12-18-23 190-285-365 | 21.5-30-38 341-476-602 | 20-28-32 317-444-507 | 18-24-28 285-380-444 | 18-24-28 285-380-444 | 18-24-28 285-380-444 |
每转排量 Flow Per Revolution | L/r r/gal | 8.4 0.45 | 7.4 0.51 | 12 0.32 | 3.4 1.1 | 10.14 0.37 | 11 0.34 | 10.14 0.37 |
钻头转速 Bit Speed | rpm | 100-135-156 | 91-146-186 | 107-150-190 | 353-495-565 | 106-142-165 | 90-132-160 | 106-142-165 |
工作扭矩 Torque | N·m Ft-lbs | 4800 3550 | 4320 3188 | 8160 6018 | 4320 3185 | 4464 3292 | 5400 3982 | 9360 6903 |
最大扭矩 Max.torque | N·m Ft-lbs | 7200 5325 | 6480 4782 | 12240 9027 | 6480 4779 | 6696 4938 | 8100 5973 | 14040 10354 |
输出功率 Output Power | kw HP | 72-112.8 96.5-151.2 | 45.6-88.8 61.1-119 | 103-182 138-244 | 80-128 108-172 | 52-81 70-108 | 70-108 94-145 | 108-168 145-225 |
推荐钻压 Weight on Bit | KN lb | 50 11000 | 70 15400 | 100 22000 | 100 22000 | 100 22000 | 100 22000 | 100 22000 |
最大钻压 Max.Weight on Bit | KN lb | 70 15400 | 120 26400 | 160 35200 | 160 35200 | 160 35200 | 160 35200 | 160 35200 |
连接螺纹 Connection （REG） | 上端 母扣 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 |
下端 母扣 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | |
常规长度 Length |
mm Ft | 7180 | 6555 | 8425 | 8217 | 6547 | 6949 | 8317 |
23.56 | 21.51 | 27.64 | 26.96 | 21.48 | 22.80 | 27.29 | ||
常规重量 Weight | kg lb | 480 1056 | 633 1393 | 1004 2209 | 990 2178 | 859 1890 | 706 1773 | 1044 2297 |
马达长度 Stator Length |
mm Ft | 4500 | 4000 | 5060 | 5060 | 3390 | 4300 | 5160 |
14.76 | 13.12 | 16.60 | 16.60 | 11.12 | 14.11 | 16.93 | ||
Mud-Motor Specification
Drilling tool model | 7LZ165×7.0-2.9 | 7LZ165×7.0-4 | 7LZ165×7.0-4.5 | 7LZ165×7.0-4.8 | 8LZ165×7.0-5 | 4LZ172×7.0-7 | 5LZ172×7.0-5 | |
Model | 6507829 | 6507840 | 6507845 | 6507848 | 6508950 | 6754570 | 6755650 | |
适合井眼 Bit Size | in mm | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 |
外径 OD | in mm | 6 1/2 167 | 6 1/2 167 | 6 1/2 167 | 6 1/2 167 | 6 1/2 167 | 6 3/4 174 | 6 3/4 174 |
可调角度 ABH | ° | 0-3 | 0-3 | 0-3 | 0-3 | 0-3 | 0-3/0-2 | 0-3/0-2 |
马达头数 Lobe | 7:8 | 7:8 | 7:8 | 7:8 | 8:9 | 4:5 | 5:6 | |
马达级数 Stages | 2.9 | 4 | 4.5 | 4.8 | 5 | 7 | 5 | |
马达压降 Pressure | MPa PSI | 3.5 505 | 4.8 696 | 5.4 783 | 5.8 841 | 6.0 870 | 8.4 1218 | 6.0 870 |
流量范围 Flow Rate | L/s GPM | 25-33-40 396-523-634 | 20-30-40 317-476-634 | 20-30-38 317-476-602 | 21.5-30-38 341-476-602 | 25-32-36 396-507-571 | 18-25-32 285-396-507 | 24-28-32 380-444-507 |
每转排量 Flow Per Revolution | L/r r/gal | 24 0.16 | 17.8 0.21 | 12.76 0.3 | 12 0.32 | 13.75 0.27 | 8 0.47 | 10.5 0.36 |
钻头转速 Bit Speed | rpm | 62-82-100 | 67-101-135 | 103-141-179 | 107-150-190 | 110-140-157 | 135-188-240 | 137-160-183 |
工作扭矩 Torque | N·m Ft-lbs | 11160 8230 | 10080 7434 | 8040 5929 | 8160 6018 | 10200 7522 | 7800 5750 | 7800 5750 |
最大扭矩 Max.torque | N·m Ft-lbs | 16740 12345 | 15120 11150 | 12060 8894 | 12240 9030 | 15300 11283 | 11700 8630 | 11700 8630 |
输出功率 Output Power | kw HP | 72-115 97-154 | 108-216 145-290 | 88-226 118-303 | 103-182 138-244 | 120-173 161-232 | 121-216 162-289 | 115-170 154-228 |
推荐钻压 Weight on Bit | KN lb | 100 22000 | 100 22000 | 100 22000 | 100 22000 | 100 22000 | 100 22000 | 100 22000 |
最大钻压 Max.Weight on Bit | KN lb | 160 35200 | 160 35200 | 160 35200 | 160 35200 | 160 35200 | 160 35200 | 180 39600 |
连接螺纹 Connection （REG） | 上端 母扣 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 |
下端 母扣 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | |
常规长度 Length |
mm Ft | 8917 | 8707 | 8090 | 8217 | 8917 | 8180 | 8180 |
29.26 | 28.57 | 26.54 | 26.96 | 29.26 | 26.84 | 26.84 | ||
常规重量 Weight | kg lb | 1126 2477 | 1100 2420 | 985 2167 | 1028 2262 | 1093 2405 | 1070 2354 | 1122 2468 |
马达长度 Stator Length |
mm Ft | 5760 | 5550 | 4940 | 5060 | 5760 | 5335 | 4940 |
18.90 | 18.21 | 16.21 | 16.60 | 18.90 | 17.50 | 16.21 | ||
Mud-Motor Specification
Drilling tool model | 5LZ172×7.0-6 | 6LZ172×7.0-5 | 7LZ172×7.0-3 | 7LZ172×7.0-3.3 | 7LZ172×7.0-5 | 7LZ172×7.0-5.7 | 7LZ172×7.0-6 | |
Model | 6755660 | 6756750 | 6757830 | 6757833 | 6757850 | 6757857 | 6757860 | |
适合井眼 Bit Size | in mm | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 |
外径 OD | in mm | 6 3/4 174 | 6 3/4 174 | 6 3/4 174 | 6 3/4 174 | 6 3/4 174 | 6 3/4 174 | 6 3/4 174 |
可调角度 ABH | ° | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 |
马达头数 Lobe | 5:6 | 6:7 | 7:8 | 7:8 | 7:8 | 7:8 | 7:8 | |
马达级数 Stages | 6 | 5 | 3 | 3.3 | 5 | 5.7 | 6 | |
马达压降 Pressure | MPa PSI | 7.2 1044 | 6.0 870 | 3.6 522 | 4.0 580 | 6.0 870 | 6.8 986 | 7.2 1044 |
流量范围 Flow Rate | L/s GPM | 24-28-32 380-444-507 | 20-28-38 317-444-602 | 25-32-36 396-507-571 | 25-35-40 396-555-634 | 25-32-36 396-507-571 | 18.9-28.4-37.8 300-450-600 | 25-32-36 396-507-571 |
每转排量 Flow Per Revolution | L/r r/gal | 10 0.38 | 13 0.29 | 13.5 0.28 | 26.9 0.14 | 13.5 0.28 | 16.8 0.23 | 13 0.29 |
钻头转速 Bit Speed | rpm | 144-168-192 | 93-130-176 | 111-142-160 | 56-78-80 | 111-142-160 | 68-102-135 | 116-148-166 |
工作扭矩 Torque | N·m Ft-lbs | 9360 6900 | 10320 7611 | 6100 4499 | 13580 10015 | 10400 7670 | 14400 10620 | 11400 8407 |
最大扭矩 Max.torque | N·m Ft-lbs | 14000 10400 | 15480 11416 | 9150 6748 | 20370 15020 | 15600 11505 | 21600 15930 | 17100 12611 |
输出功率 Output Power | kw HP | 138-175 185-235 | 96-182 129-244 | 68-102 91-137 | 114-182 153-244 | 122-182 164-244 | 113-227 152-304 | 144-218 193-292 |
推荐钻压 Weight on Bit | KN lb | 100 22000 | 100 22000 | 100 22000 | 100 22000 | 100 22000 | 100 22000 | 100 22000 |
最大钻压 Max.Weight on Bit | KN lb | 180 39600 | 180 39600 | 180 39600 | 180 39600 | 180 39600 | 180 39600 | 180 39600 |
连接螺纹 Connection （REG） | 上端 母扣 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 |
下端 母扣 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | |
常规长度 Length |
mm Ft | 8780 | 8300 | 9473 | 9415 | 8160 | 9824 | 8780 |
28.81 | 27.23 | 31.08 | 30.89 | 26.77 | 32.23 | 28.81 | ||
常规重量 Weight | kg lb | 1168 2570 | 1275 2717 | 1296 2851 | 1270 2794 | 1138 2504 | 1344 2957 | 1246 2741 |
马达长度 Stator Length |
mm Ft | 5560 | 5120 | 3110 | 6195 | 4940 | 6604 | 5560 |
18.24 | 16.80 | 10.20 | 20.32 | 16.21 | 21.67 | 18.24 | ||
Mud-Motor Specification
Drilling tool model | 7LZ172×7.0-6.4 | 9LZ172×7.0-4 | 4LZ178×7.0-7 | 7LZ178×7.0-6 | 7LZ178×7.0-6.4 | 7LZ178×7.0-8.5 | |
Model | 6757864 | 6759040 | 7004570 | 7007860 | 7007864 | 7007885 | |
适合井眼 Bit Size | in mm | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 | 8 3/8– 9 7/8 212.7-250.8 |
外径 OD | in mm | 6 3/4 174 | 6 3/4 174 | 7 178 | 7 178 | 7 178 | 7 178 |
可调角度 ABH | ° | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 |
马达头数 Lobe | 7:8 | 9:10 | 4:5 | 7:8 | 7:8 | 7:8 | |
马达级数 Stages | 6.4 | 4 | 7 | 6 | 6.4 | 8.5 | |
马达压降 Pressure | MPa PSI | 7.7 1117 | 4.8 696 | 8.4 1218 | 7.2 1044 | 7.7 1117 | 10.2 1480 |
流量范围 Flow Rate | L/s GPM | 25-32-36 396-507-571 | 28-35-40 444-555-634 | 18-25-32 285-396-507 | 25-32-36 396-507-571 | 25-32-36 396-507-571 | 30-38-47 475-602-750 |
每转排量 Flow Per Revolution | L/r r/gal | 13.5 0.28 | 20.5 0.18 | 8 0.47 | 13 0.29 | 13.5 0.28 | 15.4 0.25 |
钻头转速 Bit Speed | rpm | 111-142-160 | 82-103-117 | 135-188-240 | 116-148-166 | 111-142-160 | 116-148-184 |
工作扭矩 Torque | N·m Ft-lbs | 13000 9600 | 12600 9292 | 7800 5752 | 11400 8407 | 13000 9600 | 18500 13690 |
最大扭矩 Max.torque | N·m Ft-lbs | 19500 14400 | 18900 13938 | 11700 8628 | 17100 12611 | 19500 14400 | 27600 20424 |
输出功率 Output Power | kw HP | 150-216 201-290 | 134-178 180-239 | 121-216 162-290 | 144-218 193-292 | 150-216 201-290 | 180-280 241-375 |
推荐钻压 Weight on Bit | KN lb | 100 22000 | 100 22000 | 100 22000 | 100 22000 | 100 22000 |
|
最大钻压 Max.Weight on Bit | KN lb | 180 39600 | 180 39600 | 160 35200 | 180 39600 | 180 39600 | 250 55000 |
连接螺纹 Connection （REG） | 上端 母扣 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 |
下端 母扣 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | 4 1/2 | |
常规长度 Length |
mm Ft | 9473 | 8780 | 8565 | 8780 | 9473 | 10844 |
31.08 | 28.81 | 28.10 | 28.81 | 31.08 | 35.58 | ||
常规重量 Weight | kg lb | 1296 2851 | 1226 2697 | 1190 2618 | 1320 2900 | 1380 3035 | 1655 3648 |
马达长度 Stator Length |
mm Ft | 6253 | 5560 | 5335 | 5560 | 6253 | 7663 |
20.52 | 18.24 | 17.50 | 18.24 | 20.52 | 25.14 | ||
37400Mud-Motor Specification
Drilling tool model | 5LZ185×7.0Ⅴ | 7LZ185×7.0-5.5 | 9LZ185×7.0-3.8 | 4LZ197×7.0-6 | 5LZ197×7.0-4.8 | 5LZ197×7.0-5 | 5LZ197×7.0-6 | |
Model | 7255650 | 7257855 | 7259038 | 7754560 | 7755648 | 7755650 | 7755660 | |
适合井眼 Bit Size | in mm | 9 7/8– 12 1/4 250.8-311.2 | 9 7/8– 12 1/4 250.8-311.2 | 9 7/8– 12 1/4 250.8-311.2 | 9 7/8– 12 1/4 250.8-311.2 | 9 7/8– 12 1/4 250.8-311.2 | 9 7/8– 12 1/4 250.8-311.2 | 9 7/8– 12 1/4 250.8-311.2 |
外径 OD | in mm | 7 1/4 187 | 7 1/4 187 | 7 1/4 187 | 7 3/4 197 | 7 3/4 197 | 7 3/4 197 | 7 3/4 197 |
可调角度 ABH | ° | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | |||
马达头数 Lobe | 5:6 | 7:8 | 9:10 | 4:5 | 5:6 | 5:6 | 5:6 | |
马达级数 Stages | 5 | 5.5 | 3.8 | 6 | 4.8 | 5 | 6 | |
马达压降 Pressure | MPa PSI | 6.0 870 | 6.6 957 | 4.6 667 | 7.2 1044 | 5.8 841 | 6.0 870 | 7.2 1044 |
流量范围 Flow Rate | L/s GPM | 25-34-40 396-539-634 | 25-35-40 396-555-634 | 40-50-60 634-793-951 | 25-37-50 396-586-792 | 25-40-55 396-634-872 | 25-34-40 396-540-634 | 25-40-55 396-634-872 |
每转排量 Flow Per Revolution | L/r r/gal | 13 0.29 | 16 0.24 | 25.5 0.15 | 11.5 0.33 | 16.3 0.23 | 13.3 0.28 | 13.1 0.29 |
钻头转速 Bit Speed | rpm | 114-155-183 | 94-131-150 | 94-118-141 | 130-193-260 | 92-147-200 | 113-153-180 | 115-183-250 |
工作扭矩 Torque | N·m Ft-lbs | 10080 7434 | 13200 9734 | 14160 10442 | 10800 7965 | 12000 8880 | 11280 8319 | 11520 8496 |
最大扭矩 Max.torque | N·m Ft-lbs | 15120 11150 | 19800 14602 | 21240 15664 | 16200 11947 | 18000 13320 | 16920 12478 | 17280 12743 |
输出功率 Output Power | kw HP | 108-173 145-232 | 128-308 172-413 | 154-230 207-308 | 144-216 193-290 | 144-240 193-322 | 120-192 161-257 | 144-230 193-308 |
推荐钻压 Weight on Bit | KN lb | 140 30800 | 140 30800 | 140 30800 | 170 37400 | 170 37400 | 170 37400 | 170 37400 |
最大钻压 Max.Weight on Bit | KN lb | 200 44000 | 200 44000 | 200 44000 | 250 55000 | 250 55000 | 250 55000 | 250 55000 |
连接螺纹 Connection （REG） | 上端 母扣 | NC50 | NC50 | NC50 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 |
下端 母扣 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | |
常规长度 Length |
mm Ft | 9017 | 9017 | 9017 | 8434 | 8434 | 8066 | 8833 |
29.58 | 29.58 | 29.58 | 27.67 | 27.67 | 26.46 | 28.98 | ||
常规重量 Weight | kg lb | 1330 2926 | 1330 2926 | 1370 3014 | 1450 3197 | 1392 3062 | 1392 3067 | 1454 3199 |
马达长度 Stator Length |
mm Ft | 5950 | 5950 | 5950 | 5160 | 5160 | 4793 | 5550 |
19.52 | 19.52 | 19.52 | 16.93 | 16.93 | 15.73 | 18.21 | ||
Mud-Motor Specification
Drilling tool model | 7LZ197×7.0-4 | 7LZ197×7.0-5 | 3LZ203×7.0-8 | 5LZ203×7.0-4.8 | 5LZ203×7.0-5 | 5LZ203×7.0-6 | 6LZ203×7.0-6 | |
Model | 7757840 | 7757850 | 8003480 | 8005648 | 8005650 | 8005660 | 8006760 | |
适合井眼 Bit Size | in mm | 9 7/8– 12 1/4 250.8-311.2 | 9 7/8– 12 1/4 250.8-311.2 | 9 7/8– 12 1/4 250.8-311.2 | 9 7/8– 12 1/4 250.8-311.2 | 9 7/8– 12 1/4 250.8-311.2 | 9 7/8– 12 1/4 250.8-311.2 | 9 7/8– 12 1/4 250.8-311.2 |
外径 OD | in mm | 7 3/4 197 | 7 3/4 197 | 8 203 | 8 203 | 8 203 | 8 203 | 8 203 |
可调角度 ABH | ° | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 |
马达头数 Lobe | 7:8 | 7:8 | 3:4 | 5:6 | 5:6 | 5:6 | 6:7 | |
马达级数 Stages | 4 | 5 | 8 | 4.8 | 5 | 6 | 6 | |
马达压降 Pressure | MPa PSI | 5.0 725 | 6.0 870 | 9.6 1390 | 5.8 841 | 6.0 870 | 7.2 1044 | 7.2 1044 |
流量范围 Flow Rate | L/s GPM | 30-45-65 475-713-1030 | 25-34-40 396-540-634 | 20-30-40 317-476-634 | 25-40-55 396-634-872 | 25-34-40 396-540-634 | 25-40-55 396-634-872 | 30-38-55 475-602-872 |
每转排量 Flow Per Revolution | L/r r/gal | 23.8 0.16 | 14.8 0.26 | 8.7 0.43 | 16.3 0.23 | 13.3 0.28 | 13.1 0.29 | 15.2 0.25 |
钻头转速 Bit Speed | rpm | 76-113-164 | 102-138-163 | 138-207-275 | 92-147-200 | 113-153-180 | 115-183-250 | 119-150-218 |
工作扭矩 Torque | N·m Ft-lbs | 15120 11190 | 11520 8525 | 10200 7550 | 12000 8880 | 11280 8347 | 11520 8525 | 13920 10300 |
最大扭矩 Max.torque | N·m Ft-lbs | 22680 16780 | 17280 12790 | 15300 12325 | 18000 13320 | 16920 12520 | 17280 12785 | 20880 15450 |
输出功率 Output Power | kw HP | 160-230 214-308 | 134-192 180-257 | 120-262 160-351 | 144-240 193-322 | 120-192 160-257 | 144-230 193-308 | 121-212 162-284 |
推荐钻压 Weight on Bit | KN lb | 170 37400 | 170 37400 | 170 37400 | 170 37400 | 170 37400 | 170 37400 | 170 37400 |
最大钻压 Max.Weight on Bit | KN lb | 250 55000 | 250 55000 | 250 55000 | 250 55000 | 250 55000 | 250 55000 | 250 55000 |
连接螺纹 Connection （REG） | 上端 母扣 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 |
下端 母扣 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | |
常规长度 Length |
mm Ft | 8433 | 8066 | 9329 | 8434 | 8066 | 8833 | 8433 |
27.67 | 26.46 | 30.61 | 27.67 | 26.46 | 28.98 | 27.67 | ||
常规重量 Weight | kg lb | 1483 3266 | 1392 3067 | 1700 3740 | 1517 3337 | 1462 3221 | 1585 3487 | 1563 3442 |
马达长度 Stator Length |
mm Ft | 5160 | 4793 | 6055 | 5160 | 4793 | 5550 | 5160 |
16.93 | 15.73 | 19.87 | 16.93 | 15.73 | 18.21 | 16.93 | ||
Mud-Motor Specification
Drilling tool model | 7LZ203×7.0-4 | 7LZ203×7.0-5 | 7LZ203×7.0-5.9 | 3LZ210×7.0-6 | 3LZ216×7.0-6 | 5LZ216×7.0-5 | |
Model | 8007840 | 8007850 | 8007859 | 8253460 | 8503460 | 8505650 | |
适合井眼 Bit Size | in mm | 9 7/8– 12 1/4 250.8-311.2 | 9 7/8– 12 1/4 250.8-311.2 | 9 7/8– 12 1/4 250.8-311.2 | 12 1/4– 15 1/2 311.2-393.7 | 12 1/4– 15 1/2 311.2-393.7 | 12 1/4– 15 1/2 311.2-393.7 |
外径 OD | in mm | 8 203 | 8 203 | 8 203 | 8 1/4 212 | 8 1/2 218 | 8 1/2 218 |
可调角度 ABH | ° | 0-3/0-2 | 0-3/0-2 | 0-3/0-2 | 0-3 | 0-3 | 0-3 |
马达头数 Lobe | 7:8 | 7:8 | 7:8 | 3:4 | 3:4 | 5:6 | |
马达级数 Stages | 4 | 5 | 4 | 6 | 6 | 5 | |
马达压降 Pressure | MPa PSI | 4.8 695 | 6.0 870 | 7.1 1030 | 7.2 1045 | 7.2 1045 | 6.0 870 |
流量范围 Flow Rate | L/s GPM | 30-45-65 475-713-1030 | 25-34-40 396-540-634 | 30-45-65 475-713-1030 | 32-38-42 507-602-666 | 32-38-42 507-602-666 | 32-42-50 507-666-793 |
每转排量 Flow Per Revolution | L/r r/gal | 23.8 0.16 | 14.8 0.26 | 23.8 0.16 | 10.7 0.35 | 10.7 0.35 | 18.4 0.2 |
钻头转速 Bit Speed | rpm | 76-113-164 | 102-138-163 | 76-113-164 | 180-213-235 | 180-213-235 | 105-137-163 |
工作扭矩 Torque | N·m Ft-lbs | 15120 11190 | 11520 8525 | 22300 16500 | 9840 7280 | 9840 7280 | 14160 10480 |
最大扭矩 Max.torque | N·m Ft-lbs | 22680 16785 | 17280 12790 | 33450 24753 | 14760 10920 | 14760 10920 | 21240 15720 |
输出功率 Output Power | kw HP | 162-230 217-308 | 134-192 180-257 | 235-340 315-455 | 165-217 221-290 | 165-217 221-290 | 154-240 206-322 |
推荐钻压 Weight on Bit | KN lb | 170 37400 | 170 37400 | 170 37400 | 180 39600 | 180 39600 | 180 39600 |
最大钻压 Max.Weight on Bit | KN lb | 250 55000 | 250 55000 | 250 55000 | 280 61600 | 280 61600 | 280 61600 |
连接螺纹 Connection （REG） | 上端 母扣 | 5 1/2 | 5 1/2 | 5 1/2 | 6 5/8 | 6 5/8 | 6 5/8 |
下端 母扣 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | |
常规长度 Length |
mm Ft | 8433 | 8066 | 10750 | 9025 | 9025 | 9025 |
27.67 | 26.46 | 35.27 | 29.61 | 29.61 | 29.61 | ||
常规重量 Weight | kg lb | 1563 3442 | 1520 3344 | 1908 4206 | 1538 3383 | 1680 3696 | 1766 3890 |
马达长度 Stator Length |
mm Ft | 5160 | 4793 | 7406 | 5338 | 5338 | 5455 |
16.93 | 15.73 | 24.30 | 17.51 | 17.51 | 17.90 | ||
Mud-Motor Specification
Drilling tool model | 7LZ216×7.0-4 | 7LZ216×7.0-4.5 | 5LZ228×7.0-6 | 7LZ228×7.0-4 | 6LZ222×7.0-6.6 | 3LZ244×7.0-6 | |
Model | 8507840 | 8507845 | 9005660 | 9007840 | 8756766 | 9623460 | |
适合井眼 Bit Size | in mm | 12 1/4– 15 1/2 311.2-393.7 | 12 1/4– 15 1/2 311.2-393.7 | 12 1/4– 15 1/2 311.2-393.7 | 12 1/4– 15 1/2 311.2-393.7 | 12 1/4– 15 1/2 311.2-393.7 | 12 1/4– 17 1/2 311.2-444.5 |
外径 OD | in mm | 8 1/2 218 | 8 1/2 218 | 9 228 | 9 228 | 8 3/4 222 | 9 5/8 244 |
可调角度 ABH | ° | 0-3 | 0-3 | 0-3 | |||
马达头数 Lobe | 7:8 | 7:8 | 5:6 | 7:8 | 6:7 | 3:4 | |
马达级数 Stages | 4 | 4.5 | 6 | 4 | 6.6 | 6 | |
马达压降 Pressure | MPa PSI | 4.8 695 | 5.4 785 | 7.2 1045 | 4.8 695 | 7.9 1148 | 7.2 1045 |
流量范围 Flow Rate | L/s GPM | 35-45-55 555-714-872 | 40-50-60 634-793-951 | 20-30-40 317-476-634 | 40-50-60 634-793-951 | 38-60-82 600-950-1300 | 40-50-60 634-793-951 |
每转排量 Flow Per Revolution | L/r r/gal | 22.8 0.166 | 27.9 0.203 | 16.5 0.23 | 27 0.14 | 28 0.135 | 17 0.22 |
钻头转速 Bit Speed | rpm | 90-118-145 | 87-110-130 | 72-109-145 | 85-110-130 | 81-128-176 | 140-176-212 |
工作扭矩 Torque | N·m Ft-lbs | 13200 9768 | 18000 13275 | 12000 8900 | 16800 12430 | 28235 20822 | 15800 11700 |
最大扭矩 Max.torque | N·m Ft-lbs | 19800 14650 | 27000 19910 | 18000 13320 | 25200 18650 | 42350 31231 | 23800 17500 |
输出功率 Output Power | kw HP | 144-240 193-322 | 192-300 257-402 | 90-180 120-240 | 156-252 209-338 | 240-518 322-695 | 190-260 255-348 |
推荐钻压 Weight on Bit | KN lb | 180 39600 | 180 39600 | 180 39600 | 180 39600 | 180 39600 | 180 39600 |
最大钻压 Max.Weight on Bit | KN lb | 280 61600 | 280 61600 | 280 61600 | 280 61600 | 280 61600 | 280 61600 |
连接螺纹 Connection （REG） | 上端 母扣 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 |
下端 母扣 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | |
常规长度 Length |
mm Ft | 9025 | 9565 | 8979 | 8979 | 11125 | 9398 |
29.61 | 31.38 | 29.46 | 29.46 | 36.50 | 30.83 | ||
常规重量 Weight | kg lb | 1960 4312 | 1960 4312 | 2026 4457 | 2026 4457 | 2289 5036 | 2438 5364 |
马达长度 Stator Length |
mm Ft | 5455 | 6002 | 5455 | 5455 | 7562 | 5810 |
17.90 | 19.69 | 17.90 | 17.90 | 24.81 | 19.06 | ||
Mud-Motor Specification
Drilling tool model | 5LZ244×7.0-5 | 5LZ244×7.0-6 | 7LZ244×7.0-4 | 7LZ244×7.0-4.8 | 7LZ244×7.0-5 | 9LZ244×7.0-4 | |
Model | 9625650 | 9625660 | 9627840 | 9627848 | 9627850 | 9629040 | |
适合井眼 Bit Size | in mm | 12 1/4– 17 1/2 311.2-444.5 | 12 1/4– 17 1/2 311.2-444.5 | 12 1/4– 17 1/2 311.2-444.5 | 12 1/4– 17 1/2 311.2-444.5 | 12 1/4– 17 1/2 311.2-444.5 | 12 1/4– 17 1/2 311.2-444.5 |
外径 OD | in mm | 9 5/8 244 | 9 5/8 244 | 9 5/8 244 | 9 5/8 244 | 9 5/8 244 | 9 5/8 244 |
可调角度 ABH | ° | 0-3 | 0-3 | 0-3 | 0-3 | 0-3 | 0-3 |
马达头数 Lobe | 5:6 | 5:6 | 7:8 | 7:8 | 7:8 | 9:10 | |
马达级数 Stages | 5 | 6 | 4 | 4.8 | 5 | 4 | |
马达压降 Pressure | MPa PSI | 6.0 870 | 7.2 1045 | 4.8 695 | 7.2 1042 | 6.0 870 | 4.8 695 |
流量范围 Flow Rate | L/s GPM | 40-50-60 634-793-951 | 40-50-60 634-793-951 | 40-53-65 634-840-1030 | 40-53-65 634-840-1030 | 35-55-75 555-872-1189 | 50-66-75 793-1046-1189 |
每转排量 Flow Per Revolution | L/r r/gal | 25.4 0.15 | 25.4 0.15 | 33.3 0.11 | 33.3 0.11 | 29.3 0.13 | 35 0.11 |
钻头转速 Bit Speed | rpm | 95-118-140 | 95-118-140 | 72-95-117 | 82-105-127 | 72-113-154 | 86-113-129 |
工作扭矩 Torque | N·m Ft-lbs | 19600 14455 | 23520 17405 | 19800 14560 | 32120 23660 | 21000 15540 | 23400 17315 |
最大扭矩 Max.torque | N·m Ft-lbs | 29400 21682 | 35280 26105 | 29700 21980 | 49654 36623 | 31500 23310 | 35100 25975 |
输出功率 Output Power | kw HP | 160-240 214.4-321.6 | 192-288 257-386 | 153-274 205-367 | 202-460 275-625 | 144-336 193-450 | 216-312 289-418 |
推荐钻压 Weight on Bit | KN lb | 180 39600 | 180 39600 | 180 39600 | 180 39600 | 180 39600 | 180 39600 |
最大钻压 Max.Weight on Bit | KN lb | 280 61600 | 280 61600 | 280 61600 | 280 61600 | 280 61600 | 280 61600 |
连接螺纹 Connection （REG） | 上端 母扣 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 |
下端 母扣 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 | |
常规长度 Length |
mm Ft | 9188 | 10188 | 9398 | 10645 | 9788 | 9398 |
30.14 | 33.43 | 30.83 | 34.92 | 32.11 | 30.83 | ||
常规重量 Weight | kg lb | 2289 5036 | 2496 5491 | 2409 5300 | 2593 5704 | 2454 5399 | 2409 5300 |
马达长度 Stator Length |
mm Ft | 5600 | 6600 | 5810 | 7502 | 6200 | 5810 |
18.37 | 21.65 | 19.06 | 24.61 | 20.34 | 19.06 | ||
Mud-Motor Specification
Drilling tool model | 5LZ286×7.0-4 | 5LZ286×7.0-5 | H5LZ120×7.0-4.5 ERT Motor | H7LZ127×7.0Ⅳ ERT Motor | H7LZ135×7.0V ERT Motor | H7LZ165×7.0-4.5 ERT Motor | |
Model | 11255640 | 11255650 | H4755645 | H5007840 | H5257850 | H6507845 | |
适合井眼 Bit Size | in mm | 14 3/4–26 374.7-660.4 | 14 3/4–26 374.7-660.4 | 5 7/8– 7 7/8 149.2-200 | 5 7/8– 7 7/8 149.2-200 | 5 7/8– 7 7/8 149.2-200 | 8 3/8– 9 7/8 212.7-250.8 |
外径 OD | in mm | 11 1/4 286 | 11 1/4 286 | 4 3/4 122 | 5 127 | 5 1/4 136 | 6 1/2 167 |
可调角度 ABH | ° | 0-3 | 0-3 | 0-3 | 0-3/0-2 | 0-3 | |
马达头数 Lobe | 5:6 | 5:6 | 5:6 | 7:8 | 7:8 | 7:8 | |
马达级数 Stages | 4 | 5 | 4.5 | 4 | 5 | 4.5 | |
马达压降 Pressure | MPa PSI | 4.8 695 | 6.0 870 | 6.75 980 | 6.0 870 | 7.5 1088 | 6.75 980 |
流量范围 Flow Rate | L/s GPM | 55-65-80 872-1030-1268 | 37.5-55-70 594-872-1110 | 10-14-18 159-222-285 | 9-14-18 143-222-285 | 14-19-22 222-301-349 | 20-30-38 317-476-602 |
每转排量 Flow Per Revolution | L/r r/gal | 36.4 0.10 | 31.5 0.12 | 4.8 0.8 | 6.6 0.57 | 7.7 0.49 | 12.76 0.3 |
钻头转速 Bit Speed | rpm | 91-107-132 | 71-105-133 | 126-176-227 | 82-128-164 | 109-148-171 | 103-141-179 |
工作扭矩 Torque | N·m Ft-lbs | 22560 16695 | 24000 17760 | 4300 3173 | 5370 3963 | 7360 5432 | 10960 8089 |
最大扭矩 Max.torque | N·m Ft-lbs | 33840 25040 | 36000 26640 | 6450 4760 | 8060 5940 | 11040 8142 | 16440 12125 |
输出功率 Output Power | kw HP | 210-322 281-430 | 132-241 177-323 | 54-97 72.4-130 | 56-110 75-148 | 84-132 112.6-176.9 | 118.8-205.2 149.8-275 |
推荐钻压 Weight on Bit | KN lb | 200 44000 | 200 44000 | 40 8800 | 50 11000 | 50 11000 | 100 22000 |
最大钻压 Max.Weight on Bit | KN lb | 300 66000 | 300 66000 | 60 13200 | 70 15400 | 70 15400 | 160 35200 |
连接螺纹 Connection （REG） | 上端 母扣 | 7 5/8 | 7 5/8 | 3 1/2 | 3 1/2 | 4 1/2 | 4 1/2 |
下端 母扣 | 7 5/8 | 7 5/8 | 3 1/2 | 3 1/2 | 4 1/2 | 4 1/2 | |
常规长度 Length |
mm Ft | 9130 | 8750 | 6517 | 6547 | 7180 | 8090 |
29.95 | 28.71 | 21.38 | 21.48 | 23.56 | 26.54 | ||
常规重量 Weight | kg lb | 2900 6380 | 2817 6197 | 410 900 | 480 1060 | 540 1190 | 1120 2465 |
马达长度 Stator Length |
mm Ft | 5780 | 5500 | 4000.00 | 4000 | 4500 | 4940 |
18.96 | 18.04 | 13.12 | 13.12 | 14.76 | 16.21 | ||
Mud-Motor Specification
Drilling tool model | H7LZ172×7.0V ERT Motor | H5LZ203×7.0-4.8 ERT Motor | H5LZ216×7.0-5.0 ERT Motor | H7LZ244×7.0-4.5 ERT Motor | |
Model | H6757850 | H8005648 | H8505650 | H9627845 | |
适合井眼 Bit Size | in mm | 8 3/8– 9 7/8 212.7-250.8 | 9 7/8– 12 1/4 250.8-311.2 | 12 1/4– 15 1/2 311.2-393.7 | 12 1/4– 17 1/2 311.2-444.5 |
外径 OD | in mm | 6 3/4 174 | 8 203 | 8 1/2 218 | 9 5/8 244 |
可调角度 ABH | ° | 0-3/0-2 | 0-3/0-2 | 0-3 | 0-3 |
马达头数 Lobe | 7:8 | 5:6 | 5:6 | 7:8 | |
马达级数 Stages | 5 | 4.8 | 5 | 4.5 | |
马达压降 Pressure | MPa PSI | 7.5 1088 | 7.2 1044 | 7.5 1088 | 6.75 980 |
流量范围 Flow Rate | L/s GPM | 25-32-36 396-507-571 | 25-40-55 396-634-872 | 32-42-50 507-666-793 | 35-55-75 555-872-1189 |
每转排量 Flow Per Revolution | L/r r/gal | 13.5 0.28 | 16.3 0.23 | 18.4 0.2 | 29.3 0.13 |
钻头转速 Bit Speed | rpm | 111-142-160 | 92-147-200 | 105-137-163 | 72-113-154 |
工作扭矩 Torque | N·m Ft-lbs | 11800 8700 | 15000 11070 | 18000 13275 | 24000 17760 |
最大扭矩 Max.torque | N·m Ft-lbs | 17700 13055 | 22500 16595 | 27000 19910 | 36000 26640 |
输出功率 Output Power | kw HP | 150-216 201-289.4 | 144-317 193-425 | 192-300 257-402 | 189-405 253-543 |
推荐钻压 Weight on Bit | KN lb | 100 22000 | 170 37400 | 180 39600 | 180 39600 |
最大钻压 Max.Weight on Bit | KN lb | 180 39600 | 250 55000 | 280 61600 | 280 61600 |
连接螺纹 Connection （REG） | 上端 母扣 | 4 1/2 | 5 1/2 | 6 5/8 | 6 5/8 |
下端 母扣 | 4 1/2 | 6 5/8 | 6 5/8 | 6 5/8 | |
常规长度 Length |
mm Ft | 8160 | 8434 | 9025 | 8588 |
26.77 | 27.67 | 29.61 | 28.18 | ||
常规重量 Weight | kg lb | 1240 2730 | 1640 3610 | 1980 4360 | 2520 5540 |
马达长度 Stator Length |
mm Ft | 4940 | 5160 | 5455 | 5000 |
16.21 | 16.93 | 17.90 | 16.40 | ||
